Input Voltage
|
240V Single Phase(LNG)to 240V Single Phase
|
|
|
380V 3Phase(LLLNG)to 220V Single Phase
|
|
|
415V 3Phase(LLLNG)to 240V Single Phase
|
|
|
480V 3Phase(LLLNG)to 277V Single Phase
|
|
Input connector
|
150Ax5wires (or juction box ,input breaker optional)
|
|
frequency
|
50/60Hz
|
|
Total Current
|
Max 125A
|
|
Rating output Voltage
|
208-300VAC
|
|
Total output power
|
Max 4432Wx12
|
|
Soket Standard
|
12pcs C19(Customized)
|
|

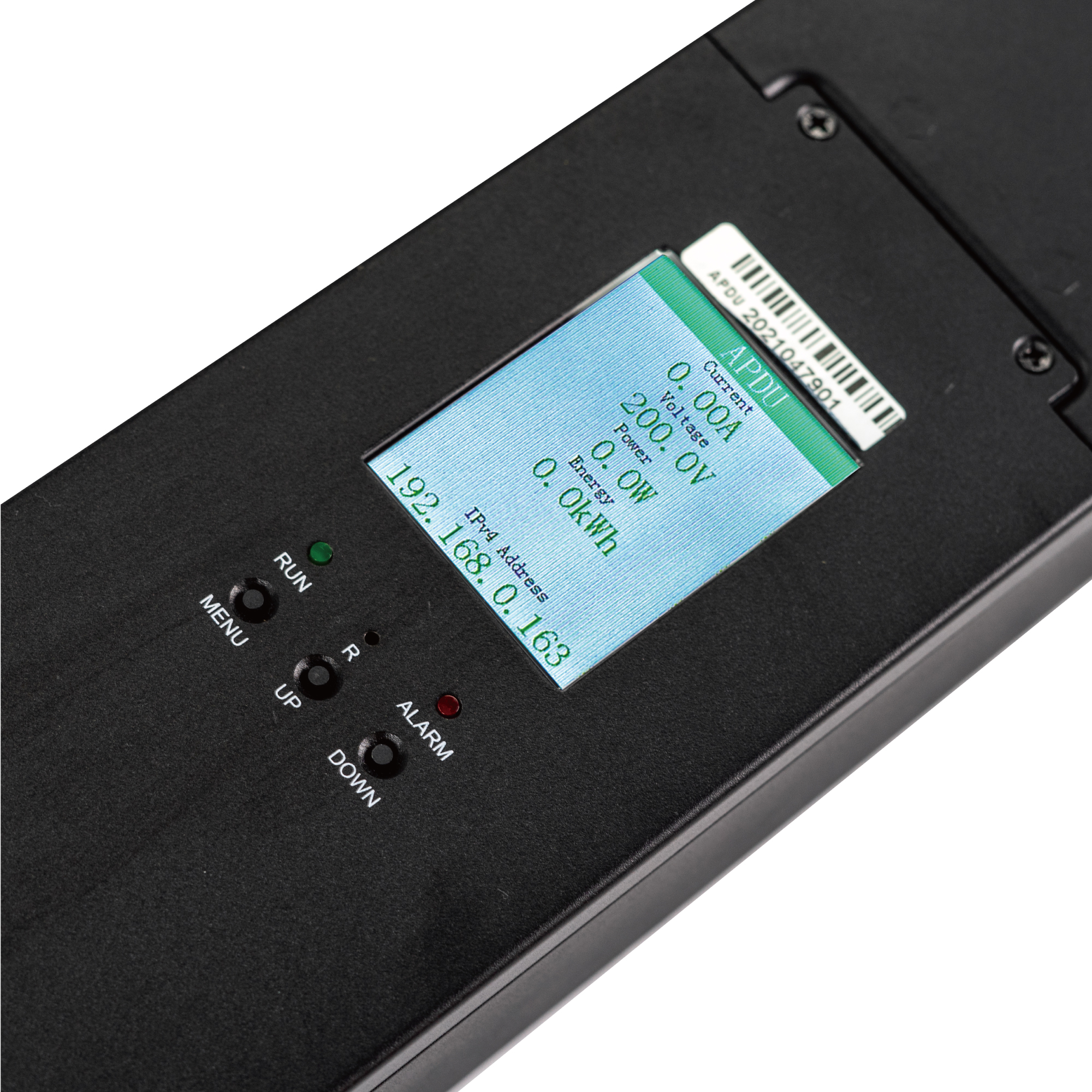

Remote Control
|
TCP/IP,Hot-swap control meter
|
|
Breaker
|
125A 3P breaker with UL or CE(Optional)
|
|
Demensions
|
LxWxH=1623*85*94mm
|
|
Net weight
|
15KG
|
|
Wire specification
|
UL certification , with flame retardant function
|
|
Input connector
|
Terminal Block(Customized)
|
|
OEM/ODM
|
Support
|
|
Test items
|
|
hi-pot test
|
PASS
|
|
Grounding
|
PASS
|
|
IR
|
PASS
|
|
Product color& material
|
|
Product color:
|
Silver white or black
|
|
Plastic flame retardant rating
|
UL94V-0 grade
|
